In Stock — Ships Same Day
Plaster-In Ultra Wide Aluminium LED Profile (2m) – Architectural Trimless Finish, Max PCB 45mm
| pcb-width |
45mm |
|---|---|
| length |
2m |
| Diffuser Type |
Opal |
| Installation Type |
Plaster-In/Trimless |

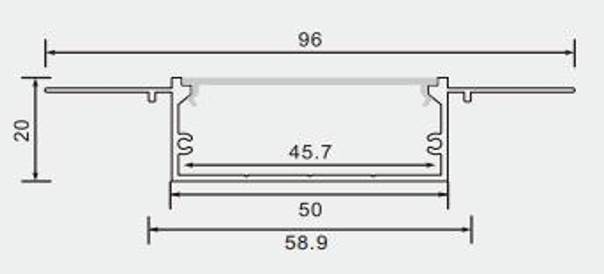

| Dimensions (Cross-section) |
50mm (W) x 20mm (H) |
| Inclusions |
2 End Caps |

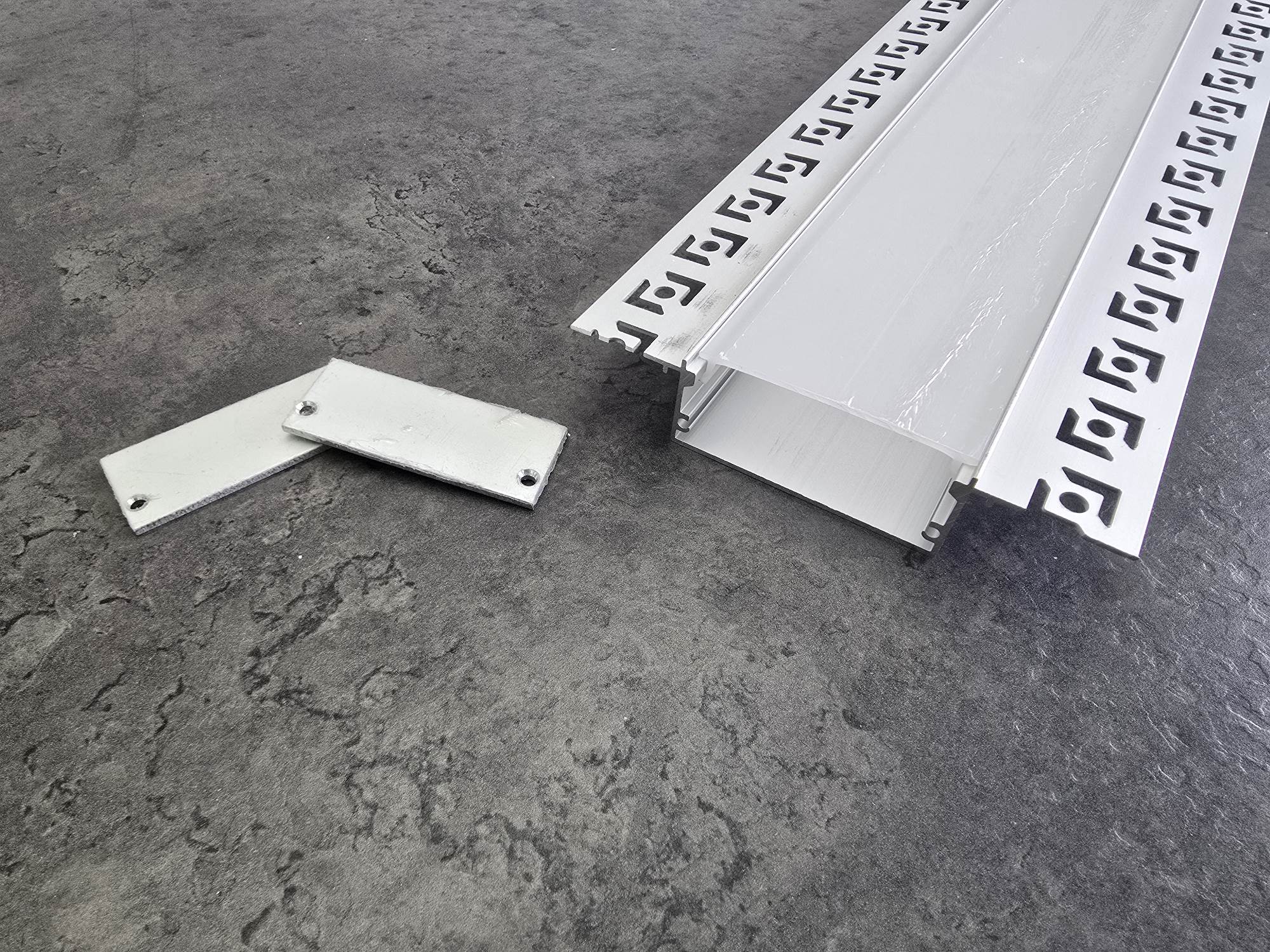

Our Plaster-In Ultra Wide Aluminium LED Profile is built for maximum-output installations. Its 45mm internal channel is the widest in our range, capable of housing dual-line runs of our IP20 COB LED strips for maximum output, or a single wider-PCB strip where a specialist width is required — we can source these on request. Fully integrated and architecturally flawless once plastered flush, it’s the superior choice for large commercial or architectural features where a single strip isn’t enough.
The generous 2-metre length minimises joins across long runs, keeping the installation clean even at scale.
Hand-picked for thermal stability and immense capacity, like every profile in our range, it delivers a continuous, trimless result across your entire project length.
Need a shorter run? This Plaster – In Ultra Wide LED Profile is also available in a 1m length. Browse our full range of plaster-in LED profiles for more options.
Pair this Plaster – In Ultra Wide LED Profile with a strip?
Browse our IP20 COB LED strip range, or get in touch if your project needs a specialist wider-PCB strip sourced.
Not sure which profile suits your project? Check out our guide to choosing the right LED profile for help deciding. Working on something bespoke? Get in touch with our team for a custom project quote.
Key Features & Technical Benefits
| Feature | Detail | Strategic Benefit (Why the professional needs it) |
| Architectural Length | Generous 2-meter length (50mm W x 20mm H). | Seamless Look: Minimizes the number of joints and plaster lines required across large surfaces, guaranteeing the cleanest, most professional long-run trimless finish. |
| Extreme Capacity | Vast 45mm internal channel. | Power Versatility: Designed to house the most powerful, widest, or dual-layer LED strips, providing the highest possible lumen output from a single, integrated light source. |
| Complete Fixing Kit | Includes 2 End Caps | All-in-One Solution: Provides all finishing components required for a complete 2-meter installation, simplifying logistics and ensuring the job is finished cleanly and efficiently. |
| Trimless Integration | Designed for plaster-in installation. | Aesthetic Precision: Eliminates the profile trim, creating an ultra-clean, wide shadow-gap look where light appears organically part of the structure. |
| Superior Heatsink | Crafted from deep, high-mass anodized aluminium. | VITAL: Ensures reliable, long-term performance across the full 2-meter run, protecting your investment in powerful, multi-strip LED configurations when permanently enclosed. |
Suggested Applications:
