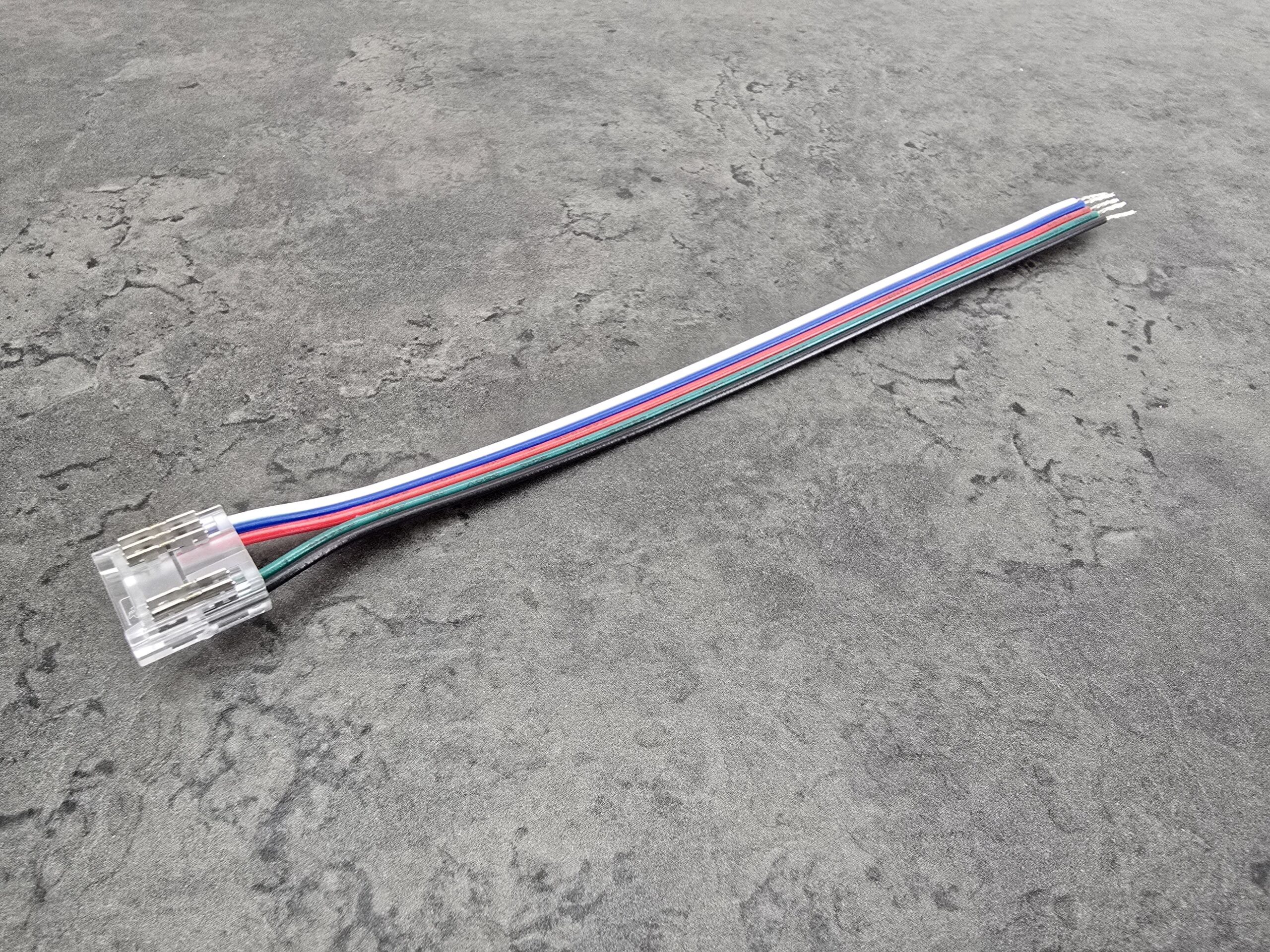

Solderless Connector with Pre-Attached 250mm Wire for RGBW LED Strips
24V · Chip-On-Board · Seamless Illumination
| ip-rating |
IP20 |
|---|---|
| angle |
Straight |
| size |
10mm ,12mm |
| max-current |
4 amp |
| pin-type |
5 Pin |
Plug-and-Play Power for Multi-Color Strips.
The 5-Pin Strip to Wire Pigtail Connector provides the fastest, most color-coded, and reliable solderless connection between your RGBW LED strip and your control gear (controller or power supply). With a convenient 250mm (approx. 10-inch) length of pre-attached wire, this connector is designed to easily bridge gaps, turn corners, or connect directly to a multi-channel controller, ensuring all four colors and the common power line are correctly wired.
Key Features & Technical Benefits (The “What”)
| Feature | Detail | Strategic Benefit |
| 5-Pin Configuration | Connects all five points: V (Common Power), Red, Green, Blue, and White. | Full RGBW Control: Ensures all four color channels and the power line are active for complete color mixing and dedicated white light. |
| 12mm PCB Width | Connector head is precisely sized for 12mm-wide RGBW LED strips (typically SMD 5050 or similar high-density strips). | Perfect Alignment: Guarantees that the connector’s pins align perfectly with the strip’s copper pads for an instant, secure electrical contact. |
| Pre-Attached Pigtail Wire | Comes with a fixed length of 250mm (approx. 10 inches) of 5-conductor (5-wire) cable. | Immediate Connection: Saves installation time by eliminating the need to cut and strip wire; the bare ends are ready to be wired into a terminal block or controller. |
| Color-Coded Wires | The pigtail wires typically follow the standard color convention: Black or White (V ), Red (R), Green (G), Blue (B), and a fifth color (W). | Simplified Wiring: Reduces the risk of polarity or channel-misalignment errors when connecting to the controller. |
| Solderless Mechanism | Uses clamp-on design with internal piercing blades. | Easy & Fast Installation: Simply cut the strip, insert it into the connector, and close the clasp—no soldering tools required. |
| Max. Current | 4A |
