In Stock — Ships Same Day
Essentials COB LED Strip – 320 LEDS p/m, 24V, IP20
| Colour Temperature | , , Warm White 3000k |
|---|---|
| ip-rating |
IP20 |
| led-p-m |
320ledp/m |
| roll-size |
5 meters |
| voltage |
24V |
| pcb-width |
8mm |
| wattage |
9W |
Our Essentials COB LED Strip is built to be the reliable foundation of our range — dependable, dot-free lighting without unnecessary extras, at a price that makes it easy to specify across a whole project. Suitable for both trade and residential installations, it's a strip installers can rely on as a dependable, no-fuss default.
Why Choose our Essentials COB LED Strip?

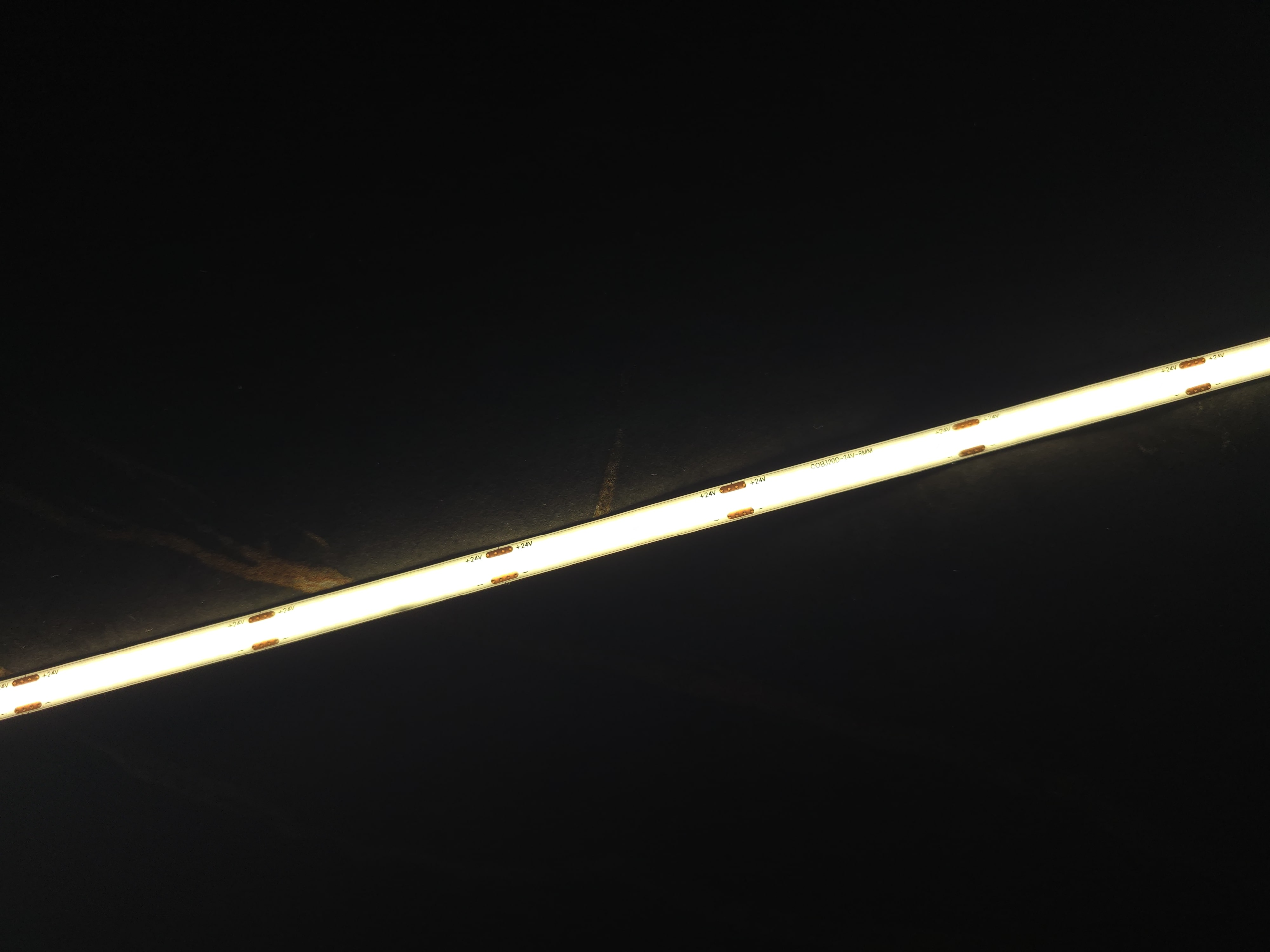

Using Chip-on-Board (COB) technology, this Essentials COB LED Strip eliminates visible hotspots for a smooth, continuous glow. It's the strip we'd recommend as your dependable default — solid performance, straightforward to specify, no unnecessary extras to pay for.
Specification
See the table for exact figures — here's what they mean for your project. A density of 320 LEDs per metre gives good uniformity for everyday accent and general lighting. A CRI above 90 means colours and finishes near the light still render accurately — a genuinely useful spec even at this entry level. Compatible with our opal diffuser LED profiles, which soften and evenly spread the light, with a small, expected reduction in output as a result.
Essentials COB LED Strip Colour Temperatures

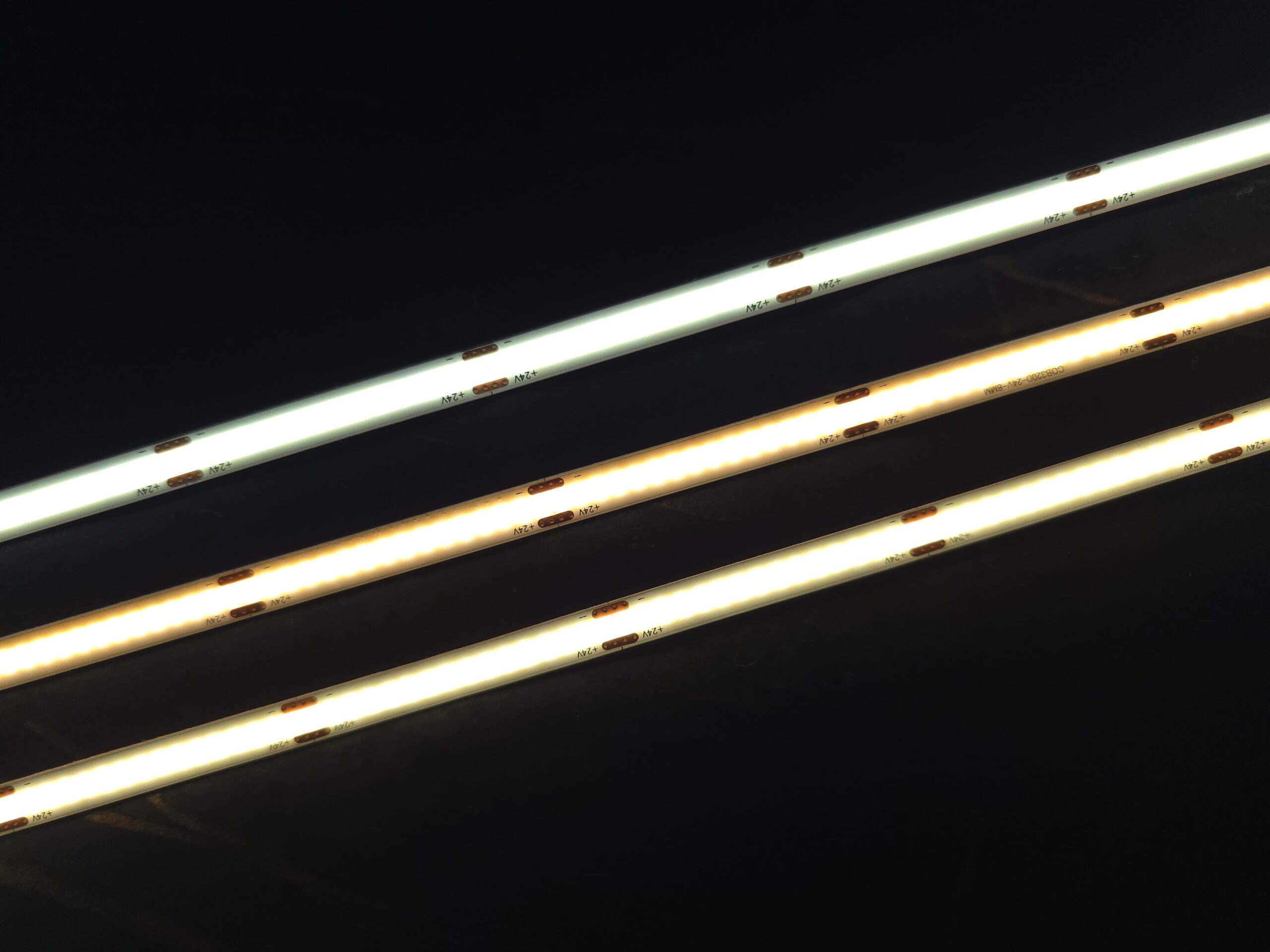

Every Essentials COB LED Strip is available in three colour temperatures, so you can match the mood to the room:
- 3000K (Warm White) — a cosy, relaxed glow suited to bedrooms and living spaces.
- 4000K (Natural White) — crisp, balanced light for kitchens, hallways, and modern spaces.
- 6000K (Cool White) — bright, high-energy light for utility areas and task lighting.
Pair with a Compatible LED Profile
This Essentials COB LED Strip's PCB fits a range of our LED profiles. Browse our LED Profiles — or if you're not sure which type suits your project, check out our guide to choosing the right LED profile.
Match with a 24V LED Driver
- Looking for a compatible 24V LED Driver? We have a range of Dimmable/Non-Dimmable and IP20 or IP67 rated drivers — browse LED Drivers
- Not sure what size driver you need? See how to calculate the right driver size for your total run length.
How to Control Your Essentials COB LED Strip
Essentials COB LED strips can be switched using an LED-compatible wall switch rated for the driver's load. For additional control — dimming, or scheduling — pair with one of our controllers: choose our WiFi LED Controller for direct phone control, or our Zigbee LED Controller for a mesh-based smart home system compatible with Google Assistant and Alexa. We also offer a range of wireless wall controls and remotes — contact us to find out more.
Joining and Extending Runs

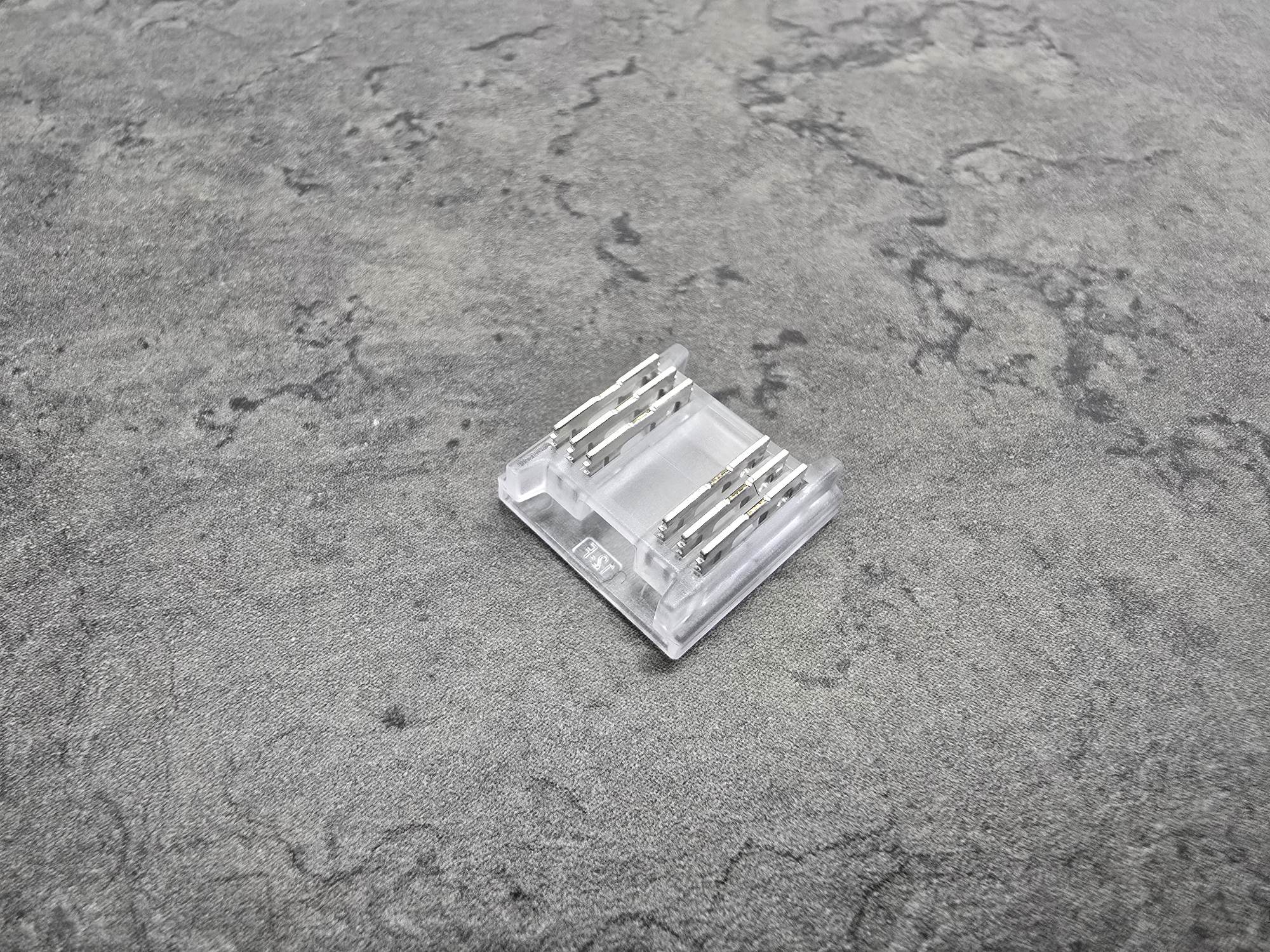

Need to join two lengths or turn a corner? Our solderless COB connectors are available in a range of styles — including strip-to-strip, strip-to-wire and 90-degree corner connectors — browse our connector range for a clean join with no soldering required.
Complete your setup
- Not sure which colour temperature suits your project? Read our guide to choosing the right colour temperature
- Need higher output for a primary light source? See our High Power COB LED Strip.
- Need something bespoke? Contact us for a project-specific quote
Frequently Asked Questions:
Can this strip be dimmed?
Yes, when paired with a compatible dimmable driver and either a wall dimmer switch rated for LED loads or one of our controllers.
Can I cut this strip to a custom length?
The Essentials range has fixed cut points at set intervals — for cut-anywhere flexibility, see our Free Cut range instead.
What's the difference between this and your High Power range?
Both use COB technology for a smooth, dot-free glow — High Power steps up the density and output for primary lighting, while Essentials is built for everyday accent and general lighting at a more accessible price.
What's the difference between this and your Free Cut range?
Free Cut uses a higher-density 528 LEDs per metre (against Essentials' 320) for a smoother glow, with fixed cut points of 50mm on Essentials versus cut-anywhere flexibility on Free Cut. Free Cut Premium Pro steps up further to 14W per metre for higher output — Free Cut and Essentials both run at a lower wattage by comparison.
Do I need to worry about voltage drop on long runs? As a general guide, we recommend a maximum single run of 10m before voltage drop becomes noticeable — beyond this, the far end of the run can appear dimmer than the end nearest the driver. For runs longer than 10m, power the strip from both ends or use a mid-point power injection connection. Get in touch and we'll help make sure your specific setup is powered correctly.
Key Features & Technical Benefits
Suggested Applications:
Installation & Notes
Crucial Installation & Warranty Notes (Must Read)
To ensure the long-term performance of your high-density strip and to validate the 5-Year Ultimate LED’s Warranty, two additional components are mandatory. Failure to adhere to these specifications will void the warranty:
- LED Driver (Power Supply): An appropriate 24V DC LED driver is essential. The driver must be a quality, regulated power supply certified for LED use. Your warranty is contingent on the driver providing stable, consistent 24V DC output and the driver’s wattage correctly matching or exceeding the total strip load.
- Aluminum LED Profile (Heatsink): Installation in a suitable aluminum profile is strongly recommended. The profile must provide adequate heat dissipation to protect the high-density COB chips from overheating. Damage resulting from thermal runaway due to non-use or inadequate heatsinking will not be covered.
Compatibility & Recommended Accessories
To complete your installation, we recommend the following compatible products:
- 24V LED Drivers
- Aluminium LED Profiles
- Single Colour Controllers/Dimmers: (Link to relevant Smart Lighting & Control sub-category, if dimming is desired)
- Solderless Connectors
Certifications
